Internal Broaches
.315 (8mm) Shank Diameter x 28mm Long

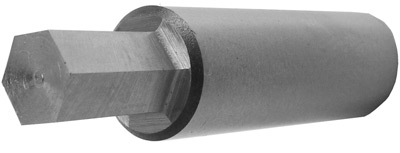

Hex Broaches
- Ground all over
- Angular clamping flat prevents pull out
- M4PM Material

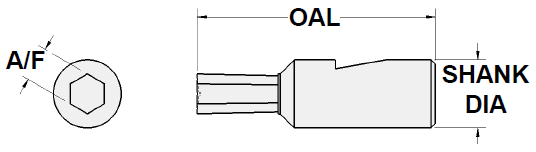

| Inch / Hex 8MM (.315) Shank Diameter x 28MM (1.103) OAL |
||||||
| NOMINAL HEX SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| .050 | .0505 | .107 | 315SW-050H | $63.50 | ||
| 1/16 | .0630 | .133 | 315SW-1/16H | $63.50 | ||
| 5/64 | .0786 | .166 | 315SW-5/64H | $63.50 | ||
| 3/32 | .0947 | .199 | 315SW-3/32H | $63.50 | ||
| 7/64 | .1106 | .233 | 315SW-7/64H | $63.50 | ||
| 1/8 | .1265 | .266 | 315SW-1/8H | $63.50 | ||
| 9/64 | .1421 | .299 | 315SW-9/64H | $63.50 | ||
| 5/32 | .1582 | .333 | 315SW-5/32H | $63.50 | ||
| 3/16 | .1895 | .398 | 315SW-3/16H | $63.50 | ||
| 7/32 | .2212 | .427 | 315SW-7/32H | $63.50 | ||
| 1/4 | .2525 | .443 | 315SW-1/4H | $63.50 | ||
| 9/32 | .2837 | .458 | 315SW-9/32H | $81.00 | ||
| 5/16 | .3152 | .473 | 315SW-5/16H | $83.50 | ||
| 11/32 | .3467 | .572 | 315SW-11/32H | $83.50 | ||
| 3/8 | .3782 | .572 | 315SW-3/8H | $84.50 | ||
| Metric / Hex 8MM (.315) Shank Diameter x 28MM (1.103) OAL |
||||||
| NOMINAL HEX SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| 1.5MM | .0603 | .127 | 315SW-1.5H | $63.50 | ||
| 2.0MM | .0800 | .169 | 315SW-2.0H | $63.50 | ||
| 2.5MM | .1002 | .211 | 315SW-2.5H | $63.50 | ||
| 3.0MM | .1204 | .253 | 315SW-3.0H | $63.50 | ||
| 4.0MM | .1602 | .337 | 315SW-4.0H | $63.50 | ||
| 5.0MM | .1997 | .420 | 315SW-5.0H | $63.50 | ||
| 6.0MM | .2395 | .436 | 315SW-6.0H | $63.50 | ||
| 7.0MM | .2789 | .456 | 315SW-7.0H | $70.00 | ||
| 8.0MM | .3187 | .475 | 315SW-8.0H | $83.50 | ||
| 9.0MM | .3583 | .572 | 315SW-9.0H | $83.50 | ||
| 10.0MM | .3979 | .572 | 315SW-10.0H | $84.50 | ||
Square Broaches
| Metric / Square 8MM (.315) Shank Diameter x 28MM (1.103) OAL |
||||||
| NOMINAL SQUARE SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| 1.5MM | .0603 | .127 | 315SW-1.5S | $63.50 | ||
| 2.0MM | .0800 | .169 | 315SW-2.0S | $63.50 | ||
| 2.5MM | .1002 | .211 | 315SW-2.5S | $63.50 | ||
| 3.0MM | .1204 | .253 | 315SW-3.0S | $63.50 | ||
| 4.0MM | .1602 | .337 | 315SW-4.0S | $63.50 | ||
| 5.0MM | .1997 | .420 | 315SW-5.0S | $63.50 | ||
| 6.0MM | .2392 | .436 | 315SW-6.0S | $81.00 | ||
| 7.0MM | .2789 | .456 | 315SW-7.0S | $83.50 | ||
| 8.0MM | .3187 | .475 | 315SW-7.0S | $83.50 | ||
| Inch / Square 8MM (.315) Shank Diameter x 28MM (1.103) OAL |
||||||
| NOMINAL SQUARE SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| 1/16 | .0630 | .133 | 315SW-1/16S | $63.50 | ||
| 5/64 | .0786 | .166 | 315SW-5/64S | $63.50 | ||
| 3/32 | .0947 | .199 | 315SW-3/32S | $63.50 | ||
| 7/64 | .1106 | .233 | 315SW-7/64S | $63.50 | ||
| 1/8 | .1265 | .266 | 315SW-1/8S | $63.50 | ||
| 9/64 | .1421 | .299 | 315SW-9/64S | $63.50 | ||
| 5/32 | .1582 | .333 | 315SW-5/32S | $63.50 | ||
| 11/64 | .1739 | .366 | 315SW-11/64S | $63.50 | ||
| 3/16 | .1895 | .398 | 315SW-3/16S | $63.50 | ||
| 7/32 | .2209 | .427 | 315SW-7/32S | $63.50 | ||
| 1/4 | .2522 | .443 | 315SW-1/4S | $63.50 | ||
| 9/32 | .2837 | .458 | 315SW-9/32S | $83.50 | ||
| 5/16 | .3152 | .473 | 315SW-5/16S | $84.50 | ||

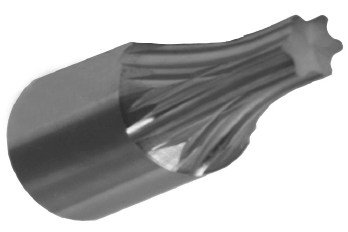

6 Lobed Head Screw
| 6 Lobed 8MM (.315) Shank Diameter x 28MM (1.103) OAL |
||||||
| NOMINAL 6-LOBE SIZE |
MAX CUTTING DEPTH* |
PART NO. | PRICE | |||
| T5 | .047 | 315SW-T5 | $158.50 | |||
| T6 | .047 | 315SW-T6 | $158.50 | |||
| T7 | .063 | 315SW-T7 | $158.50 | |||
| T8 | .078 | 315SW-T8 | $158.50 | |||
| T9 | .078 | 315SW-T9 | $158.50 | |||
| T10 | .109 | 315SW-T10 | $158.50 | |||
| T15 | .109 | 315SW-T15 | $158.50 | |||
| T20 | .156 | 315SW-T20 | $158.50 | |||
| T25 | .156 | 315SW-T25 | $158.50 | |||
| T27 | .188 | 315SW-T27 | $158.50 | |||
| T30 | .219 | 315SW-T30 | $158.50 | |||
