Internal Broaches
.750 Shank Diameter x 2-3/4” Long

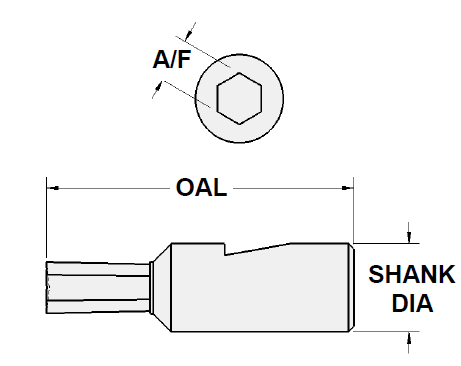

Hex Broaches
- Ground all over
- Angular clamping flat prevents pull out
- Fit all 3/4" I.D. Rotating Broach Tools
- M4PM Material
- Available in T15PM H.S.S. (Prices on application)
- Custom lengths, A/F, & Depths of Cut available to quote upon request
| Metric / Hex 3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL |
||||||
| NOMINAL HEX SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| 6.0MM | .2395 | .503 | 750-6.0H | $134.00 | ||
| 7.0MM | .2798 | .588 | 750-7.0H | $134.00 | ||
| 8.0MM | .3187 | .670 | 750-8.0H | $134.00 | ||
| 9.0MM | .3583 | .752 | 750-9.0H | $134.00 | ||
| 10.0MM | .3979 | .836 | 750-10.0H | $134.00 | ||
| 11.0MM | .4376 | .919 | 750-11.0H | $134.00 | ||
| 12.0MM | .4774 | 1.003 | 750-12.0H | $134.00 | ||
| 13.0MM | .5170 | 1.086 | 750-13.0H | $134.00 | ||
| 14.0MM | .5566 | 1.169 | 750-14.0H | $144.00 | ||
| 15.0MM | .5968 | 1.254 | 750-15.0H | $144.00 | ||
| 16.0MM | .6369 | 1.338 | 750-16.0H | $144.00 | ||
| 17.0MM | .6770 | 1.346 | 750-17.0H | $151.50 | ||
| 18.0MM | .7169 | 1.366 | 750-18.0H | $151.50 | ||
| 19.0MM | .7568 | 1.385 | 750-19.0H | $151.50 | ||
| 20.0MM | .7972 | 1.405 | 750-20.0H | $157.00 | ||
| 21.0MM | .8375 | 1.469 | 750-21.0H | $157.00 | ||
| 22.0MM | .8779 | 1.469 | 750-22.0H | $157.00 | ||
| 23.0MM | .9173 | 1.469 | 750-23.0H | $157.00 | ||
| 24.0MM | .9566 | 1.469 | 750-24.0H | $157.00 | ||
| 25.0MM | .9960 | 1.469 | 750-25.0H | $157.00 | ||
| 26.0MM | 1.0354 | 1.469 | 750-26.0H | $157.00 | ||
| Inch / Hex 3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL |
||||||
| NOMINAL HEX SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| 1/4 | .2525 | .531 | 750-1/4H | $134.00 | ||
| 9/32 | .2837 | .596 | 750-9/32H | $134.00 | ||
| 5/16 | .3152 | .662 | 750-5/16H | $134.00 | ||
| 11/32 | .3467 | .729 | 750-11/32H | $134.00 | ||
| 3/8 | .3782 | .794 | 750-3/8H | $134.00 | ||
| 13/32 | .4097 | .860 | 750-13/32H | $144.00 | ||
| 7/16 | .4412 | .927 | 750-7/16H | $134.00 | ||
| 15/32 | .4727 | .993 | 750-15/32H | $144.00 | ||
| 1/2 | .5042 | 1.059 | 750-1/2H | $134.00 | ||
| 17/32 | .5357 | 1.125 | 750-17/32H | $144.00 | ||
| 9/16 | .5672 | 1.191 | 750-9/16H | $151.50 | ||
| 19/32 | .5987 | 1.257 | 750-19/32H | $144.00 | ||
| 5/8 | .6302 | 1.323 | 750-5/8H | $134.00 | ||
| 21/32 | .6617 | 1.338 | 750-21/32H | $151.50 | ||
| 11/16 | .6932 | 1.354 | 750-11/16H | $151.50 | ||
| 23/32 | .7237 | 1.369 | 750-23/32H | $151.50 | ||
| 3/4 | .7562 | 1.385 | 750-3/4H | $151.50 | ||
| 25/32 | .7882 | 1.400 | 750-25/32H | $157.00 | ||
| 13/16 | .8202 | 1.469 | 750-13/16H | $157.00 | ||
| 27/32 | .8522 | 1.469 | 750-27/32H | $157.00 | ||
| 7/8 | .8842 | 1.469 | 750-7/8H | $157.00 | ||
| 29/32 | .9180 | 1.469 | 750-29/32H | $157.00 | ||
| 15/16 | .9517 | 1.469 | 750-15/16H | $157.00 | ||
| 31/32 | .9855 | 1.469 | 750-31/32H | $157.00 | ||
| 1" | 1.0192 | 1.469 | 750-1H | $157.00 | ||

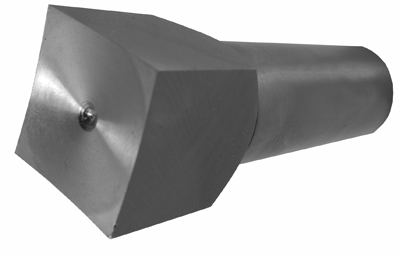

Square Broaches
- Ground all over
- Angular clamping flat prevents pull out
- Fit all Rotating Broach Tools
- M4PM Material
- Available in T15PM H.S.S. (Prices on application)
- Custom lengths, A/F, & Depths of Cut available to quote upon request
| Metric / Square 3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL |
||||||
| NOMINAL SQUARE SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| 6.00MM | .2392 | .503 | 750-6.0S | $154.50 | ||
| 7.00MM | .2798 | .588 | 750-7.0S | $154.50 | ||
| 8.00MM | .3187 | .670 | 750-8.0S | $154.50 | ||
| 9.00MM | .3583 | .752 | 750-9.0S | $154.50 | ||
| 10.00MM | .3979 | .836 | 750-10.0S | $154.50 | ||
| 11.00MM | .4376 | .919 | 750-11.0S | $154.50 | ||
| 12.00MM | .4774 | 1.003 | 750-12.0S | $154.50 | ||
| 13.00MM | .5170 | 1.086 | 750-13.0S | $170.50 | ||
| 14.00MM | .5566 | 1.169 | 750-14.0S | $170.50 | ||
| 15.00MM | .5968 | 1.253 | 750-15.0S | $170.50 | ||
| 16.00MM | .6369 | 1.326 | 750-16.0S | $170.50 | ||
| 17.00MM | .6770 | 1.346 | 750-17.0S | $170.50 | ||
| 18.00MM | .7169 | 1.366 | 750-18.0S | $173.50 | ||
| 19.00MM | .7568 | 1.385 | 750-19.0S | $173.50 | ||
| 20.00MM | .7972 | 1.405 | 750-20.0S | $173.50 | ||
| Inch / Square 3/4" (.750) Shank Diameter x 2-3/4" (2.750) OAL |
||||||
| NOMINAL SQUARE SIZE |
ACTUAL A/F* |
MAX CUTTING DEPTH* |
PART NO. | PRICE | ||
| 9/32 | .2837 | .596 | 750-9/32S | $154.50 | ||
| 5/16 | .3152 | .662 | 750-5/16S | $154.50 | ||
| 11/32 | .3467 | .729 | 750-11/32S | $154.50 | ||
| 3/8 | .3782 | .794 | 750-3/8S | $154.50 | ||
| 13/32 | .4097 | .860 | 750-13/32S | $154.50 | ||
| 7/16 | .4412 | .927 | 750-7/16S | $154.50 | ||
| 15/32 | .4727 | .993 | 750-15/32S | $154.50 | ||
| 1/2 | .5042 | 1.059 | 750-1/2S | $154.50 | ||
| 17/32 | .5357 | 1.125 | 750-17/32S | $170.50 | ||
| 9/16 | .5672 | 1.191 | 750-9/16S | $170.50 | ||
| 19/32 | .5987 | 1.257 | 750-19/32S | $170.50 | ||
| 5/8 | .6302 | 1.323 | 750-5/8S | $170.50 | ||
| 21/32 | .6617 | 1.338 | 750-21/32S | $170.50 | ||
| 11/16 | .6932 | 1.354 | 750-11/16S | $173.50 | ||
| 23/32 | .7237 | 1.369 | 750-23/32S | $173.50 | ||
| 3/4 | .7562 | 1.385 | 750-3/4S | $173.50 | ||
| 25/32 | .7882 | 1.400 | 750-25/32S | $173.50 | ||
| 13/16 | .8202 | 1.469 | 750-13/16S | $173.50 | ||
